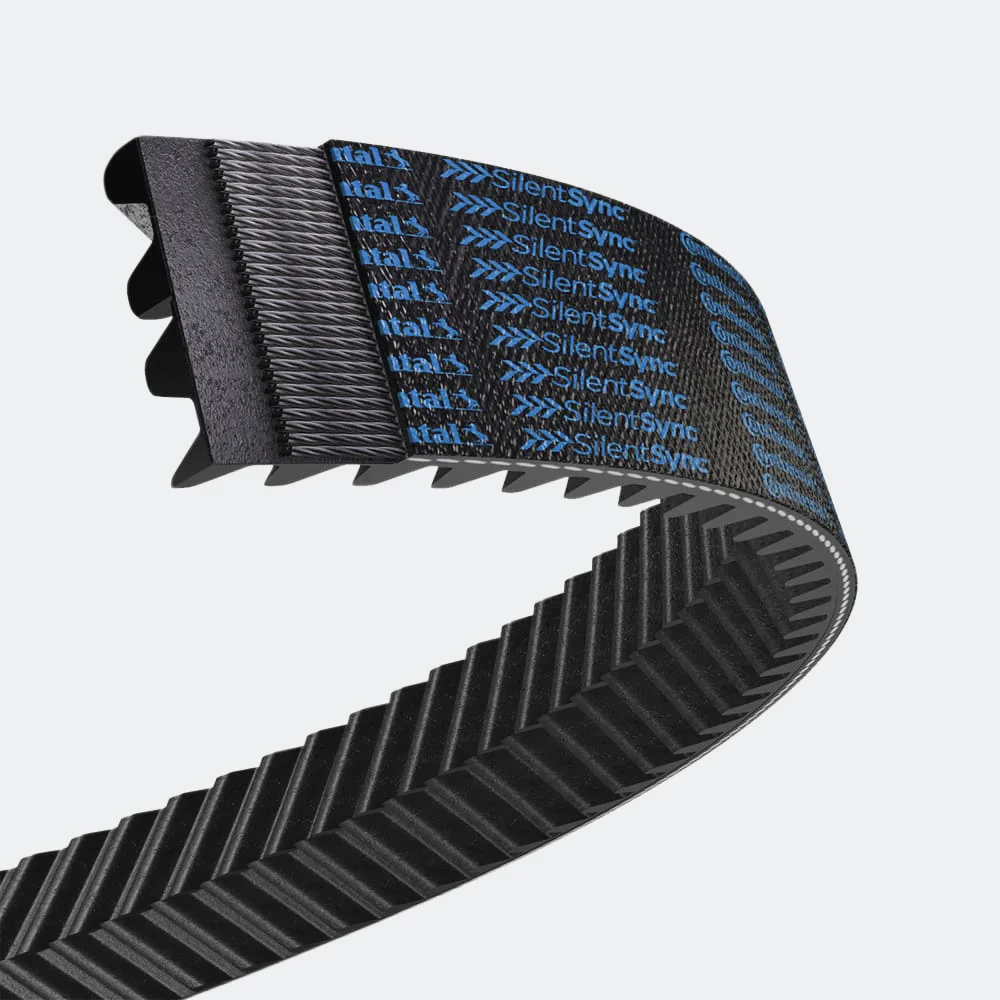

Conti SilentSync B-1190 – self-centering timing belt for industrial machines

Conti SilentSync B-1190 is a synchronous belt for belt drives that require a quiet and maintenance-free solution for power transmission between engine and driven component. The product has a working length of 1190mm, latitude code B and a belt width of 35mmThe belt is an endless, self-aligning SilentSync belt, where the HOT tooth shape provides a gradual tooth engagement and contributes to stable belt movement in suitable drives. OT belt for a machine, a drive or a replacement task.

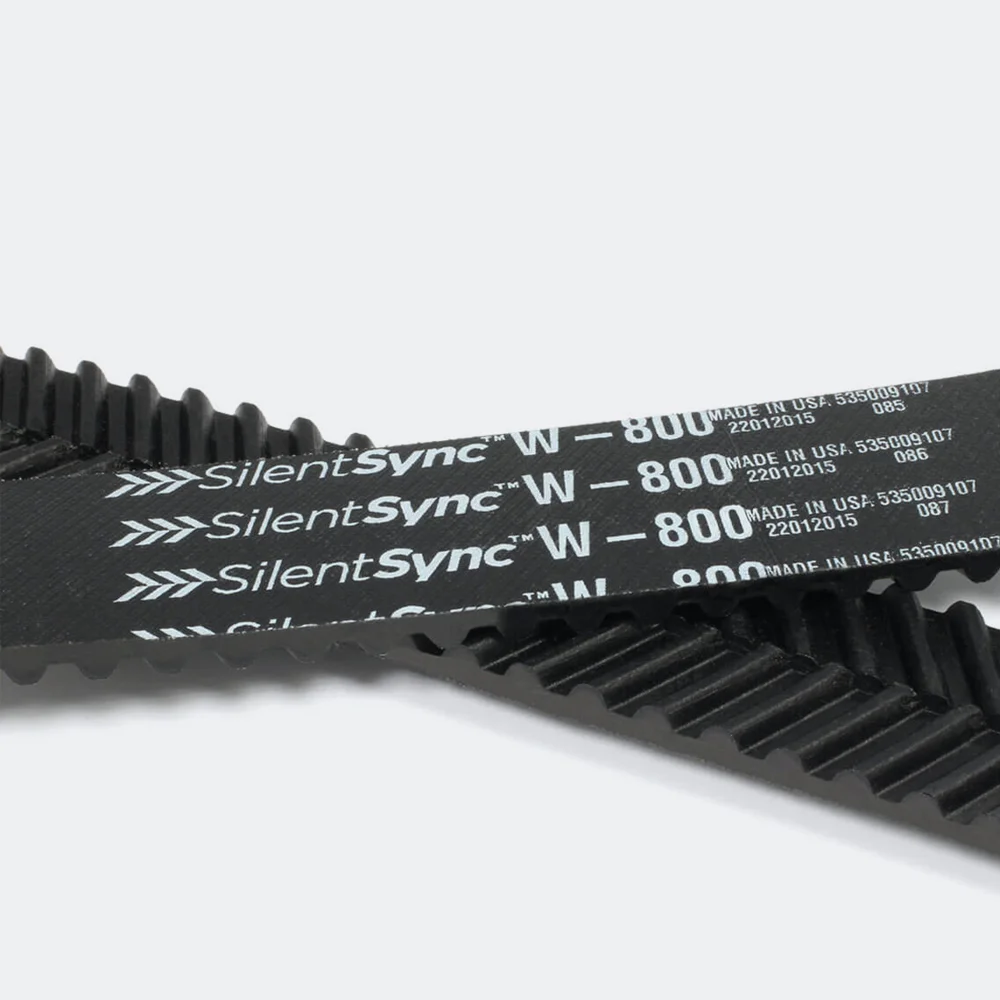

SilentSync differs from many common timing belts in that it has a self-aligning HOT tooth shape. This makes the product family particularly relevant in drives where noise, vibration and stable belt movement are of great importance. The variant's data is particularly relevant in belt drives where smooth operation, precise timing and uniform power transmission are important.

Use for this CONTI® SilentSync timing belt

This short 14M SilentSync belt is used in synchronous belt drives, where the motor and driven component must run in a fixed relationship without slip. This length and width make the belt relevant for more powerful drives with a relatively compact design and the need for a coarser tooth pitch. However, the final suitability always depends on the pulley, pulleybase, load, speed and the design of the machine. SilentSync is suitable for horizontal drives, where the self-centering function, low noise level and low-vibration operation are relevant properties.

SilentSync may visually resemble other timing belts, but the HOT profile distinguishes it from regular HTD and standard profiles. The difference is that SilentSync uses the HOT profile, which is made for SilentSync/Eagle pulleys. Length and width therefore do not describe the entire compatibility alone. The profile must also fit the pulley, the profile has an impact on belt travel, noise level, wear and power transmission.

Benefits of HOT profile and SilentSync technology

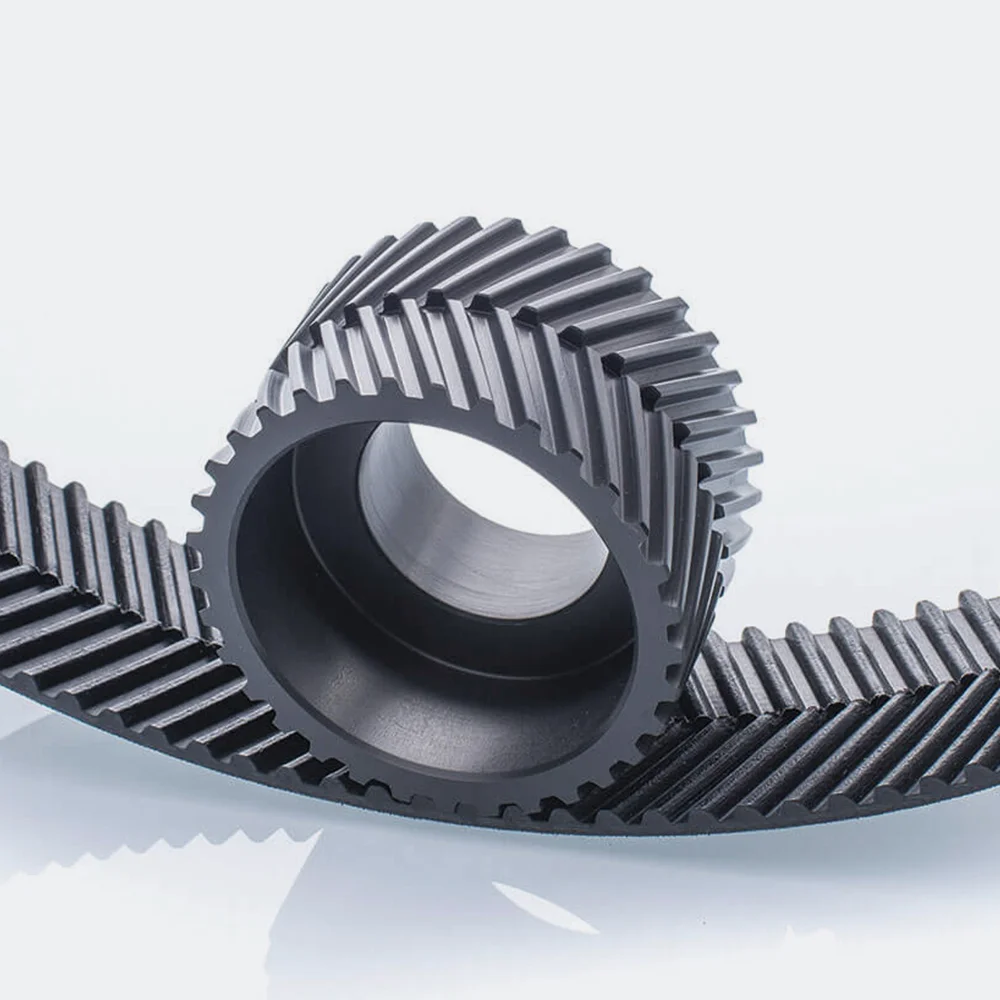

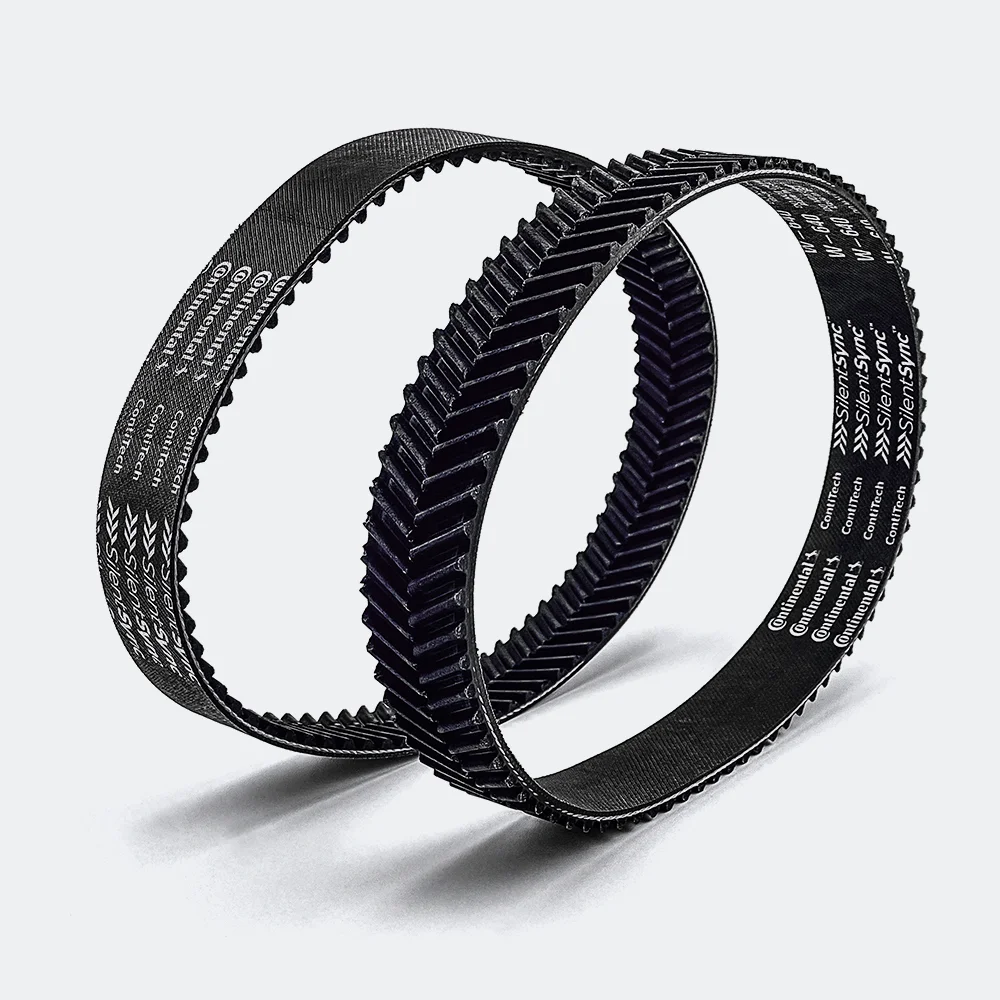

SilentSync is designed to make synchronous belt drives quieter and less vibrating. HOT stands for Helical Offset Tooth, and the tooth shape provides a smoother engagement with the pulley. When the belt and pulley are properly matched, this tooth shape can help reduce belt travel and provide smoother operation than many straight timing belt drives.

• Maintenance-free timing belt when used in a properly sized drive.
• Antistatic design according to ISO 9563.
• Suitable for horizontal drives where self-steering and stable belt travel are important.
• Self-controlling HOT tooth shape, developed for quiet and stable operation.
• Very low noise level compared to many common timing belt drives.
• Low vibration, which can be an advantage in machines where quiet operation is important.

This does not mean that the belt alone can solve all problems in a drive. If the pulleys are worn, the shafts are misaligned, or the tension is incorrect, noise, heat, or wear can still occur. However, in a properly constructed SilentSync drive, this type of belt is a strong solution when low noise levels, precise timing, and maintenance-free operation are important factors.

Technical data for this SilentSync timing belt

This variant is a 14M belt with HOT tooth shape. The length of 1190mm and the width of 35mm are key measurements for the belt geometry and its engagement with the pulley. The number of teeth is 85, calculated from the working length and tooth pitch of 14 mm. The number of teeth and tooth pitch determine the synchronous engagement of the belt in the pulley.

• Product: Conti SilentSync B-1190
• SKU: B1190
• Profile: HOT 14M

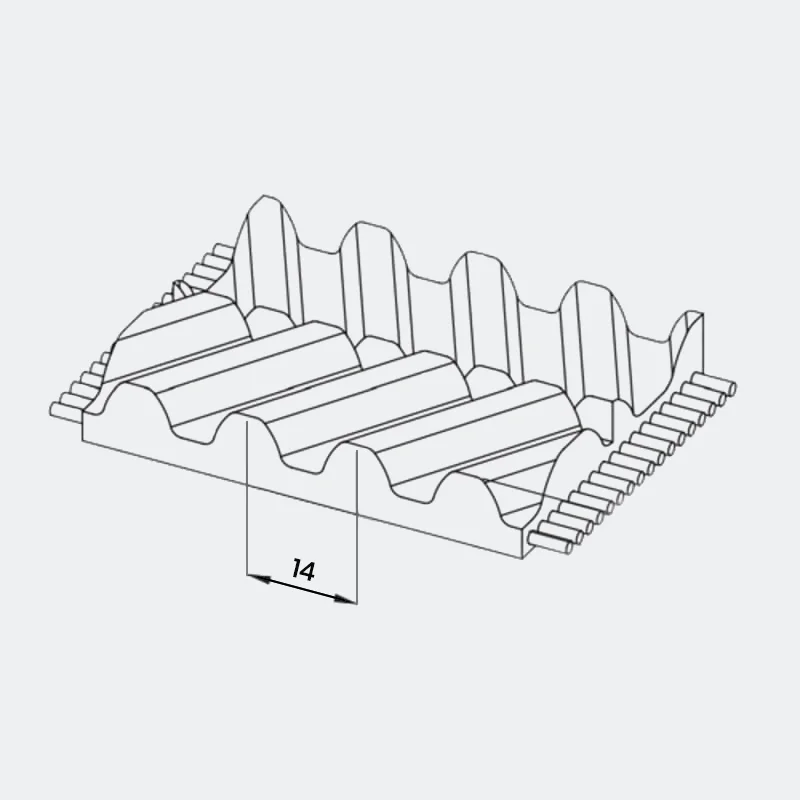

• Tooth pitch: 14 mm
• Working length / pitch length: 1190mm
• Number of teeth: 85
• Belt width: 35mm
• Color/width code: B (blue)
• Belt thickness: 9.1mm
• Tooth height: 5.30mm
• Pitch height / effective line distance: 1.40mm
• Belt type: endless, self-aligning timing belt
• Features: very quiet, low-vibration, antistatic, ozone and aging resistant
• Temperature range: depending on the application from -30 °C to +130 °C

The width code in the product name is not accidental. The SilentSync series uses letter codes, where Y, W and P belong to the 8M widths, while B, G, O and R belong to the 14M widths. This structure links letter code, length, tooth pitch and width together in the product logic of the SilentSync system.

Profile, length and width in this variant

The Conti SilentSync B-1190 is built around HOT 14M-profile with a tooth pitch of 14 mmThe working length is 1190mm, the belt width is 35mm, and the belt has 85 teeth. The combination of profile, tooth pitch, length and width determines how the belt engages with the associated SilentSync/Eagle pulleys.

The latitude code B (blue) is part of the SilentSync system design and links the belt width to a specific color and letter code. In a properly designed drive, the belt's HOT tooth shape works together with the pulley profile to ensure gradual and stable tooth engagement. This is especially important in synchronous belt drives where the belt must maintain a precise relationship between the motor and the driven shaft without slippage.

The endless construction provides a uniform belt without joints, and the self-guiding geometry contributes to smooth belt movement in suitable installations. The technical dimensions of the belt should therefore be seen as an overall specification: HOT 14M, 1190mm, 35mm and 85 teeth belong together in this specific variant.

Compatibility and operating conditions

SilentSync is not an ordinary HTD belt. The belt uses the HOT tooth shape and is designed for pulleys with a corresponding SilentSync/Eagle profile. When the belt and pulley are matched, the tooth shape can contribute to lower noise, less vibration and more stable belt operation than many traditional straight timing timing belt drives.

• The HOT profile must work with pulleys that fit the SilentSync/Eagle system.
• The tooth pitch on 14 mm determines the distance between the teeth and must correspond to the profile of the pulley.
• The belt width on 35mm affects the contact surface and load capacity of the specific drive.
• The working length of 1190mm and the number of teeth on 85 defines the synchronous circumference of the belt.
• Correct alignment, appropriate belt tension and clean pulleys have a major impact on noise, heat generation and service life.
• Limited oil resistance should be understood as a technical limitation; the belt is not intended as a universal chemical-resistant solution.

If the drive is loaded incorrectly or the pulleys are worn, noise, heat, misalignment or abnormal wear can occur. These conditions are often caused by the entire belt drive setup and not just the belt itself. The SilentSync belt works best in a properly sized drive where the profile, pulleys, tension and load match.

Installation and operation of the belt drive

When installing, the pulleys must be clean, properly aligned and designed for the SilentSync/HOT profile. A new timing belt cannot compensate for worn pulleys or misalignment. The belt tension must also be correct. Too low a tension can cause tooth skipping or unstable operation, while too high a tension can strain the bearings, shafts and the belt itself.

The SilentSync belt is maintenance-free as a belt type and does not require lubrication. This is one of the advantages compared to chain drives, where lubrication is often part of the maintenance. However, this does not mean that the drive can be ignored. Check regularly for noise, vibration, uneven running, rubber dust, heat or visible wear. These signs may indicate that the belt drive is not working optimally.

Questions about properties and use

Why does SilentSync have color codes?

The color codes are related to the available widths. This makes it easier to identify the belt width and profile family.

What does HOT mean?

HOT stands for Helical Offset Tooth, which is central to the SilentSync belt's self-aligning and low-noise properties.

Is this belt endless?

Yes, the products in this SilentSync series are fixed length endless timing belts. They are not open meter belts.

Which pulleys should be used?

SilentSync should be used with pulleys that match the HOT profile, tooth pitch and belt width. Regular pulleys should not be assumed to fit.

Designations and product identification

This type of belt is often referred to as SilentSync timing belt, Goodyear Eagle timing belt, HOT timing belt, self-aligning timing belt or synchronous belt. The terms are used for belts with the same basic principle: an endless synchronous belt that works in fixed engagement with the pulley and is designed for stable, quiet operation.

For the Conti SilentSync B-1190, the decisive characteristics are HOT 14M, working length 1190mm, belt width 35mm and 85 teeth. The letter code B is part of the product's width/color code and distinguishes the variant from other SilentSync belts with the same length but a different width.

Brief summary

Conti SilentSync B-1190 is an endless CONTI® SilentSync timing belt with HOT 14M-profile, working length 1190mm, belt width 35mm and 85 teeth. The belt is developed for synchronous drives, where low noise levels, stable belt movement and precise power transmission are important features.

The self-aligning HOT tooth shape, the antistatic design and the maintenance-free belt construction make the variant suitable for industrial belt drives with requirements for quiet operation. The product must be used in conjunction with pulleys that match the SilentSync/Eagle profile and the specified tooth pitch.
